Description

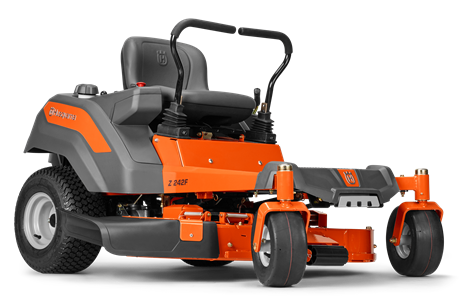

Kawasaki FR Series V-Twin – 21.5hp – 42″ cutting width – 2.2 acres/hr
Cut like a professional with true zero turn performance and heavy-duty ClearCut™
fabricated deck for landowners with open lawn areas.
Battery
Battery capacity
18 Ah
Battery manufacturer
East Penn
Battery pack weight
7.03 kg
Battery type
Lead/Acid
Battery voltage
12 V
Cells per battery
6
Quantity of batteries/battery pack
1 pcs
Weight of one battery
15.5 lbs
Capacity
Blade-tip speed
93.98 m/s
Horsepower
16 kW
Net power at preset rpm
3600 rpm
Power output
16 kW
Speed Forward, min-max
0 km/h-10.5
Speed Reverse, min-max
0 km/h-5.23
Certifications
Clutch rating
117.96 Nm
Power rating
16033 W
Dimensions
Article gross weight
330215 g
Article net weight
260816 g
Base machine, height
101.6 cm
Base machine, length
190.5 cm
Base machine, width (chute down)
129.54 cm
Base machine, width (chute up)
110 cm
Base machine, width
122 cm
Cutting height adjuster
Fender-mounted
Cutting height adjustment
Central, spring-assisted
Cutting Height, min-max
38.1-101.6 mm
Cutting height steps
6
Cutting width, min-max
106.68-106.68 cm
Deck thickness
3.5 mm
Seat back height
High
Weight
256.73 kg
Wheel size, Front
279 mm
Wheel size, Rear
457 mm
Engine
Cylinder displacement
726 см³
Cylinders
2
Engine cooling
Air
Engine name
FR Series
Motor/engine manufacturer
Kawasaki
Motor/engine model
651V
Equipment
12V outlet
No
Air filter type
Auto-type Paper
All-Wheel Drive (AWD)
No
Anti-scalp wheels
1
Armrests
Yes
Ball bearing wheels
No
Ball bearing front wheels
Yes
BioClip® kit
Available as accessory
Blade brake clutch (BBC)
Yes
Blade engagement
Electric clutch
Blade type
High-Lift blade
Blades
2 pcs
Collector
Available as accessory
Collector type
Fabric
Cup holder
Yes
Cutting deck type
ClearCut™ – Fabricated
Cutting methods
Collect/Mulch/Side discharge
Deck lifting system
Manual, hand operated
Deck Wash Port
Yes
Deflector
Included
Detachable transmission
No
Drive method
Lever-operated
Drive system
Rear wheel drive
Drive wheels
Rear
Electric start
Yes
Fan-cooled pumps
Yes
Foldable seat
No
Headlights
Yes
Hinged armrests
Standard
Hour meter type
Digital with pre-programmed service intervals
Hydraulic equipment lift
No
Nose roller
Yes
Parking brake, type
Mechanical
Seat manufacturer
Seat King
Seat spring
Yes
Seat suspension
No
Seat type
Comfort high back
Throttle control
Yes
Lubricants
Engine lubrication type
Full pressure with oil filter
Fuel consumption
4.012 l
Fuel tank location
Side (Single)
Fuel tank volume (with reserve)
13.25 l
Fuel type, min
87 octane
Oil capacity
2.1 l
Oil cooler
No
Oil filter
Yes
Oil type
10W30
Power/fuel type
Gasoline
Packaging
Packaging height
876 mm
Packaging length
1981 mm
Packaging volume
2710 dm³
Packaging width
1562 mm
Quantity in Master pack
1
