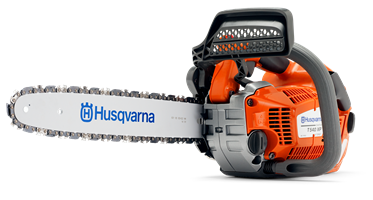

HUSQVARNA T540 XP® II

Engine
Cylinder displacement 37.7 cm³
Power output 1.8 kW
Maximum power speed 10200 rpm
Fuel tank volume 0.34 l
Idling speed 3000 rpm
Spark plug NGK CMR6H
Electrode gap 0.5 mm
Torque, max. 1.79 Nm
Fuel consumption 464 g/kWh
Fuel consumption 0.85 kg/h
Equipment
Bar length (inch) 12″
Chain pitch 3/8″
Recommended bar length, max 16 in
Recommended bar length, max 40 cm
Recommended bar length, min 12 in
Recommended bar length, min 30 cm
Chain speed at max power 19.4 m/s
Chain speed at 133% of maximum engine power speed 25.8 m/s
Chain gauge 0.05 in
Dimensions
Weight (excl. cutting equipment) 3.9 kg
Lubricant
Oil tank volume 0.2 l
Oil pump type Adjustable flow
Oil pump capacity Max 9 ml/min
Oil pump capacity Min 3 ml/min
Sound and Noise
Sound power level, guaranteed (LWA) 116 dB(A)
Sound power level, measured 114 dB(A)
Sound pressure level at operators ear 104 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle 3.1 m/s²
Equivalent vibration level (ahv, eq) rear handle 3.2 m/s²

Category:

Description

Husqvarna T540 XP® II was designed for the high-end top handle saw segment, targeting professional customers like full pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics.
