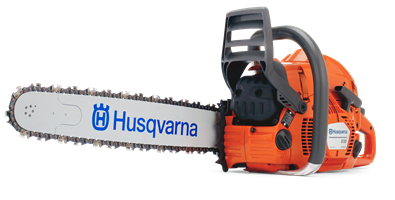

HUSQVARNA 570 AutoTune

Engine
Cylinder displacement 68 cm³
Power output 3.6 kW
Maximum power speed 9600 rpm
Fuel tank volume 0.7 l
Idling speed 2700 rpm
Spark plug NGK BPMR7A
Electrode gap 0.5 mm
Torque, max. 4.3 Nm
Fuel consumption 420 g/kWh
Fuel consumption 1.6 kg/h
Equipment
Bar length (inch) 20″
Chain pitch 3/8″
Recommended bar length, max 28 in
Recommended bar length, max 70 cm
Recommended bar length, min 15 in
Recommended bar length, min 38 cm
Chain speed at max power 21.4 m/s
Chain speed at 133% of maximum engine power speed 28.5 m/s
Chain gauge 0.058 in
Dimensions
Weight (excl. cutting equipment) 6.8 kg
Lubricant
Oil tank volume 0.4 l
Oil pump type Automatic
Oil pump capacity Max 22 ml/min
Oil pump capacity Min 5 ml/min
Sound and Noise
Sound power level, guaranteed (LWA) 116 dB(A)
Sound power level, measured 114 dB(A)
Sound pressure level at operators ear 105 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle 3.2 m/s²
Equivalent vibration level (ahv, eq) rear handle 3.4 m/s²

Category:

Description

A high-performance, powerful saw for demanding professional users. High torque over a very wide rpm range, productivity boosting features and lower fuel costs make this saw an excellent choice. Always optimal engine setting with AutoTune.
